Standardization of color measurement in the medical photography in clinical practice

Cover Page


Cite item

Full Text

Open Access Open Access
Restricted Access Access granted
Restricted Access Subscription or Fee Access

Abstract

BACKGROUND: For many medical specialties, photography is a routine element of work. Environmental factors equally and significantly influence the interpretation of colour light perception and the quality of photographic recording. Standardization of conditions in medical photography is necessary for subsequent quantitative assessment of the postoperative skin scar by analysing colour coordinates in the RGB system.

AIM: To determine the impact of illumination and shooting distance at colour coordinates when studying unaltered skin.

METHODS: Five volunteers without any skin diseases and no make-up on their facial skin were taken in the study. Skin type by the Fitzpatrick scale was II–III. Digital photography was made with a mobile device camera at distance 30 cm from the subject. For each participant, a series of digital photographs was taken at a distance of 20, 30, 40, 50, 60, 70 cm from the light source. Colour coordinates in the RGB system were measured in the digital graphics editor Adobe Photoshop CS6. Statistical analysis of the obtained data was carried out using Microsoft Office Excel 2019, Phyton 3.11.

RESULTS: The analysis of variance by the ANOVA method was used as a statistical analysis. In order to determine a statistically significant difference between the sets, Tukey HSD test was performed. A total of 1764 coordinates of three colours were subjected to statistical analysis (R=588, G=588, B=588). When constructing a heat map of the cross-correlation of the absolute values of each colour at each distance, taking into account the type of light source among themselves, the data had a strong direct correlation, regardless of the study area. When constructing a linear graph, coordinates of any of the zones were located on the same straight line.

CONCLUSION: Photography conditions were experimentally determined under which the color interpretation of light is constant. Results of the study should be taken into account during medical photography and subsequent color assessment of postoperative skin scars.

Full Text

Restricted Access

About the authors

Dmitry S. Savelyev

Saratov State Medical University named after V.I. Razumovsky

Author for correspondence.
Email: saveljevds@gmail.com
ORCID iD: 0009-0006-6832-3318
Россия, Saratov

Sergey Yu. Gorodkov

Saratov State Medical University named after V.I. Razumovsky

Email: gorodcov@yandex.ru
ORCID iD: 0000-0001-9281-6872
SPIN-code: 2458-6382

MD, Cand. Sci. (Medicine), Assoc. Professor

Россия, Saratov

Igor V. Goremykin

Saratov State Medical University named after V.I. Razumovsky

Email: goremykine@gmail.com
ORCID iD: 0000-0002-6074-9780
SPIN-code: 4172-3482

MD, Dr. Sci. (Medicine), Professor

Россия, Saratov

References

  1. Balmanno Squire AJ. Atlas of the diseases of the skin. J.&.A. Churchill, London; 1878. 104 р.
  2. Del Valle MA, Albano LC, Orsi MC, Martínez Perea MD. Aspectos éticos de la toma y el uso de la fotografía en la práctica pediátrica. Arch Argent Pediatr. 2020;118(2):S64–S68. doi: 10.5546/aap.2020.S64 (In Spanish).
  3. Roguljić M, Šimunović D, Poklepović Peričić T, et al. Publishing identifiable patient photographs in scientific journals: Scoping review of policies and practices. J Med Internet Res. 2022;24(8):e37594. EDN: DMMEWI doi: 10.2196/37594
  4. Milojevic Z, Ennis R, Toscani M, Gegenfurtner KR. Categorizing natural color distributions. Vis Res. 2018;151:18–30. doi: 10.1016/j.visres.2018.01.008
  5. Vurro M, Ling Y, Hurlbert AC. Memory color of natural familiar objects: Effects of surface texture and 3-D shape. J Vis. 2013;13(7):20. doi: 10.1167/13.7.20
  6. Westland S, Cheung V. RGB systems. In book: Chen J, Cranton W, Fihn M, eds. Handbook of visual display technology. Springer-Verlag; 2012. P. 1–6. doi: 10.1007/978-3-642-35947-7_12-2
  7. Nguyen TA, Feldstein SI, Shumaker PR, Krakowski AC. A review of scar assessment scales. Semin Cutan Med Surg. 2015;34(1):28–36. doi: 10.12788/j.sder.2015.0125
  8. Kim MS, Rodney WN, Reece GP, et al. Quantifying the aesthetic outcomes of breast cancer treatment: Assessment of surgical scars from clinical photographs. J Eval Clin Pract. 2011;17(6):1075–1082. doi: 10.1111/j.1365-2753.2010.01476.x
  9. Bae SH, Bae YC. Analysis of frequency of use of different scar assessment scales based on the scar condition and treatment method. Arch Plast Surg. 2014;41(2):111–115. doi: 10.5999/aps.2014.41.2.111
  10. Powers PS, Sarkar S, Goldgof DB, et al. Scar assessment: Current problems and future solutions. J Burn Care Rehabil. 2012;20(1, Pt. 1):54–60. doi: 10.1097/00004630-199901001-00011
  11. Simunovic MP. Colour vision deficiency. Eye (Lond). 2010;24(5):747–755. doi: 10.1038/eye.2009.251
  12. Cheon YW, Lee WJ, Rah DK. Objective and quantitative evaluation of scar color using the L*a*b* color coordinates. J Craniofac Surg. 2010;21(3):679–684. doi: 10.1097/SCS.0b013e3181d7a7eb
  13. Hansen T, Olkkonen M, Walter S, Gegenfurtner KR. Memory modulates color appearance. Nat Neurosci. 2006;9(11):1367–1368. doi: 10.1038/nn1794
  14. Elsen T, Fauvel C, Khairallah G, et al. A dataset of optical spectra and clinical features acquired on human healthy skin and on skin carcinomas. Data in Brief. 2024;53:110163. EDN: PJDOOX doi: 10.1016/j.dib.2024.110163
  15. Wyszecki G, Stiles WS. Color science: Concepts and methods, quantitative data and formulae. 2nd ed. Wiley-Interscience; 1982. 950 р.

Supplementary files

Supplementary Files
Action
1. JATS XML

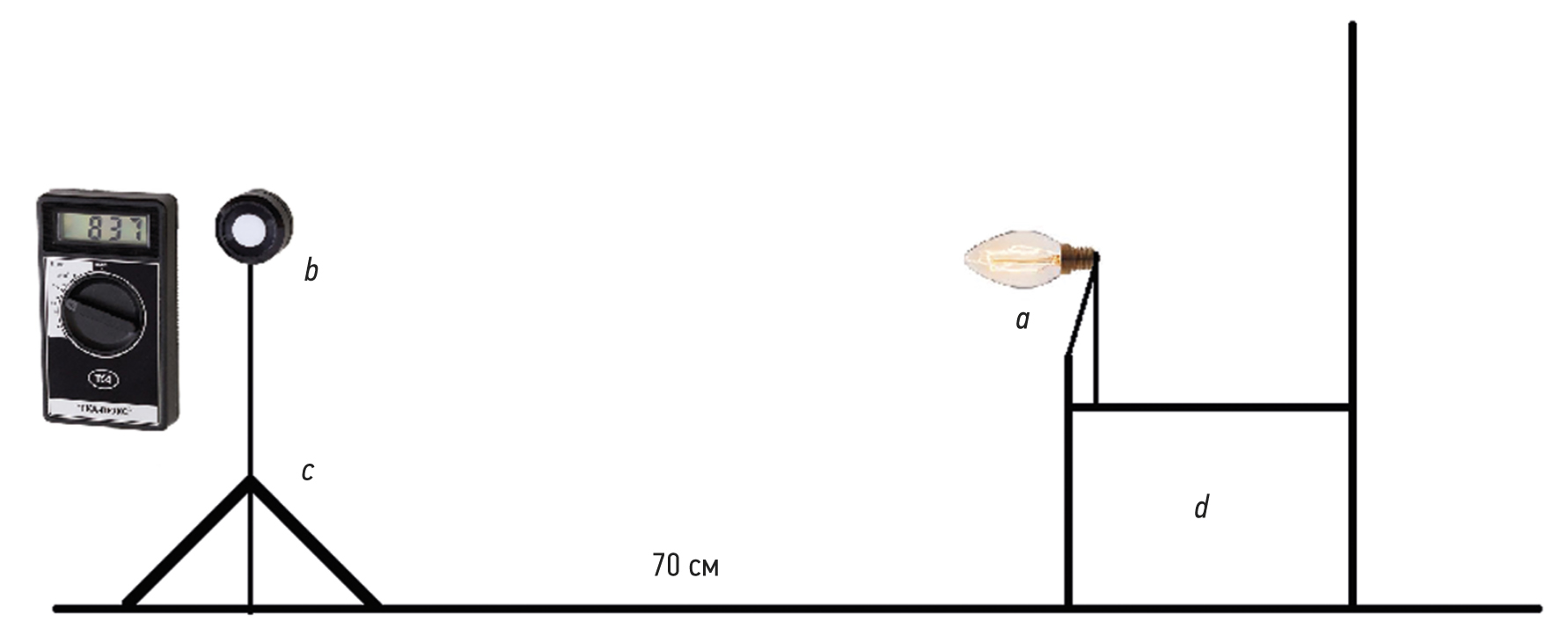

2. Fig. 1. Scheme for determining the illumination level: a — light source, b — sensor of the luxmeter, c — tripod, d — table with fixed light source

Download (674KB)

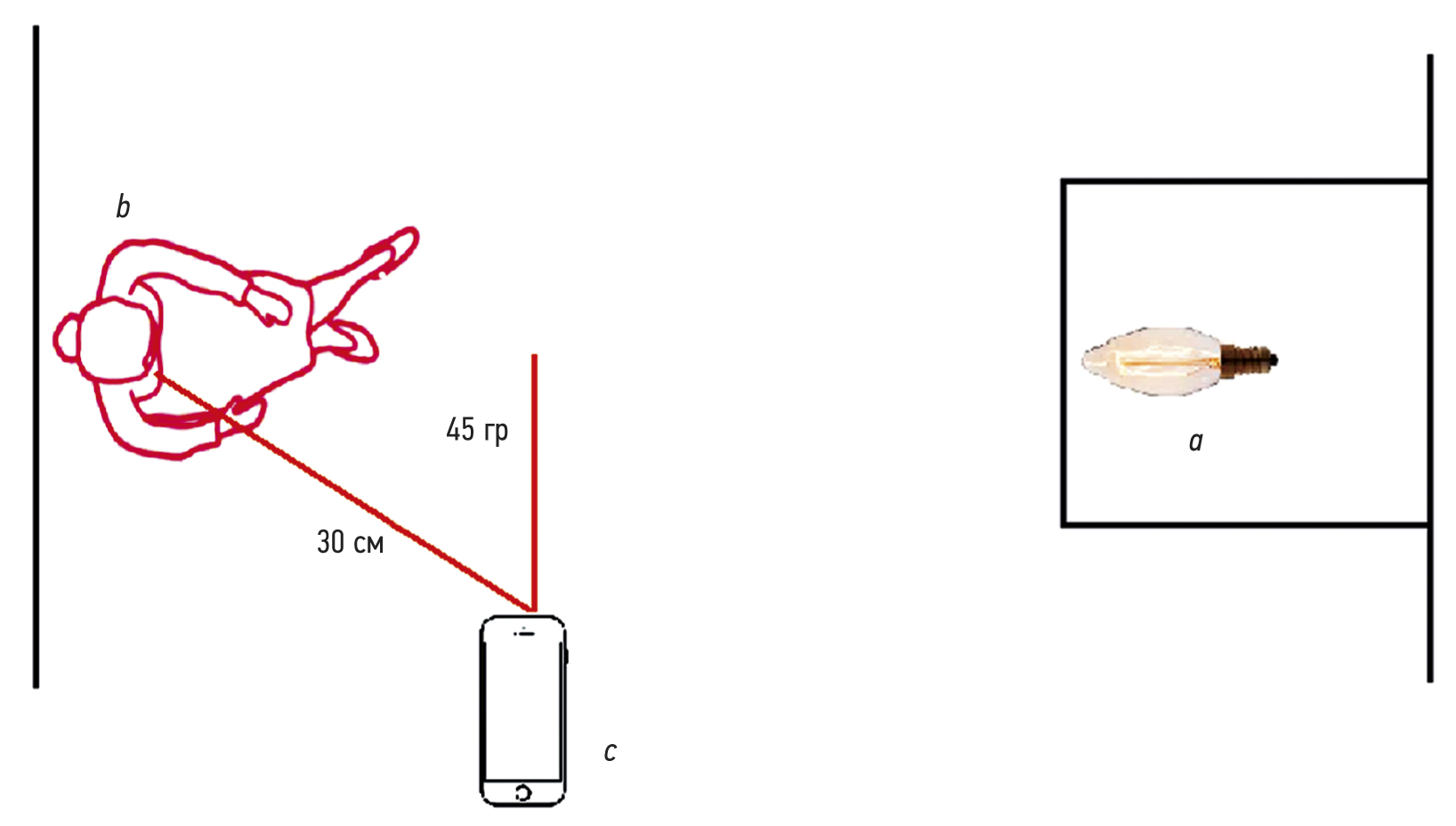

3. Fig. 2. Scheme of photography, top view: a — light source, b — participant, c — smartphone with built-in camera

Download (727KB)

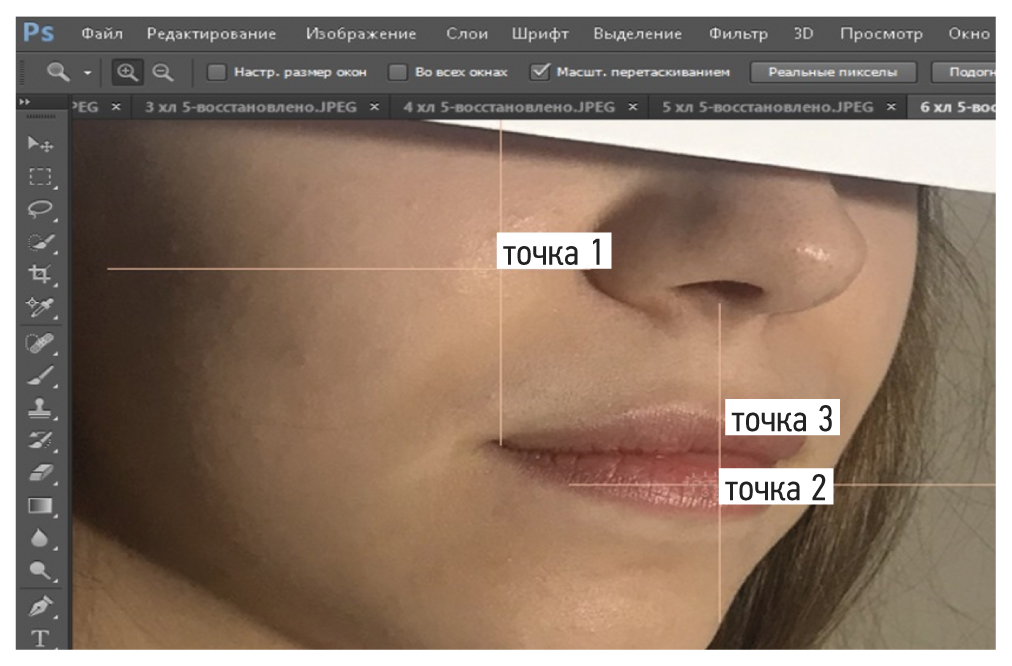

4. Fig. 3. A schematic of point acquisition in the graphical editor

Download (809KB)

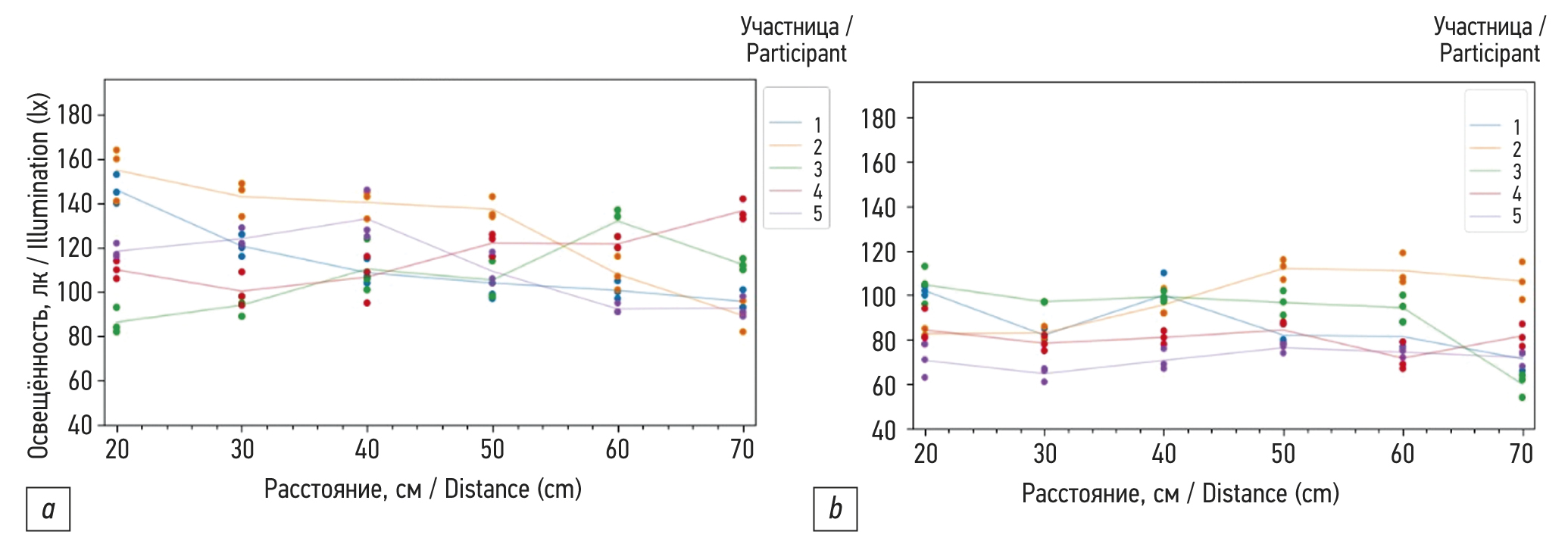

5. Fig. 4. Change of color coordinate "R" at point 1 depending on distance: a — cold light, b — warm light

Download (818KB)

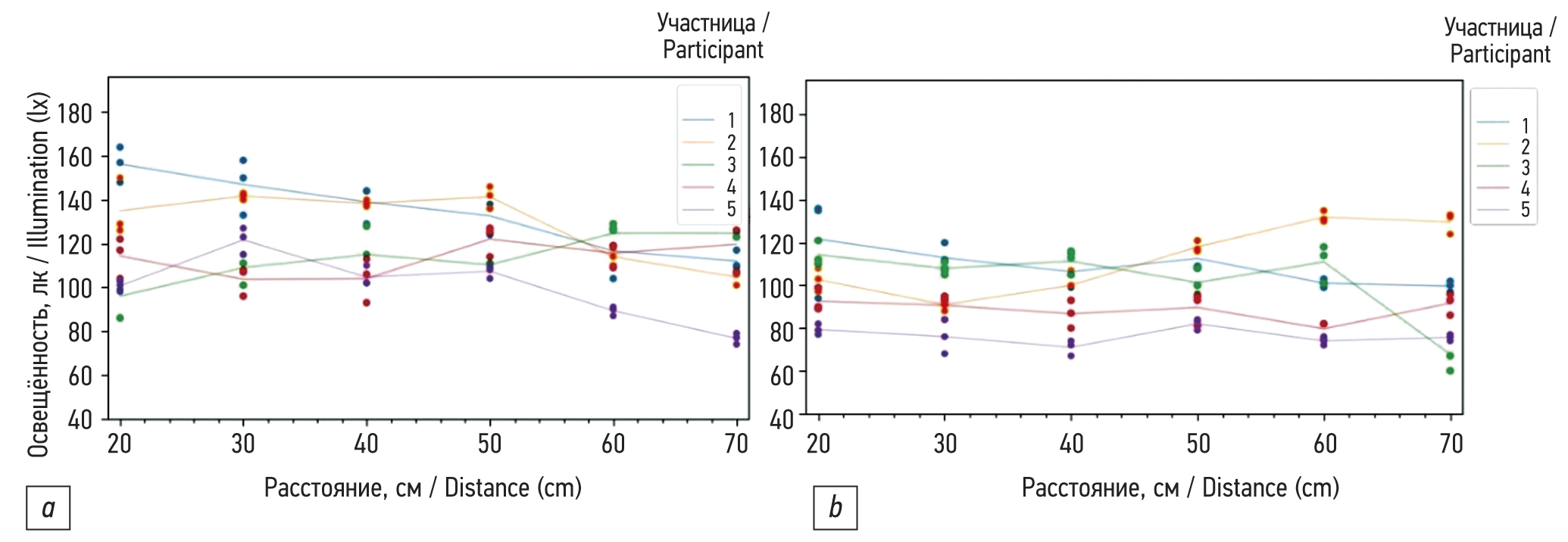

6. Fig. 5. Change of color coordinate "G" at point 2 depending on distance: a — cold light, b — warm light

Download (826KB)

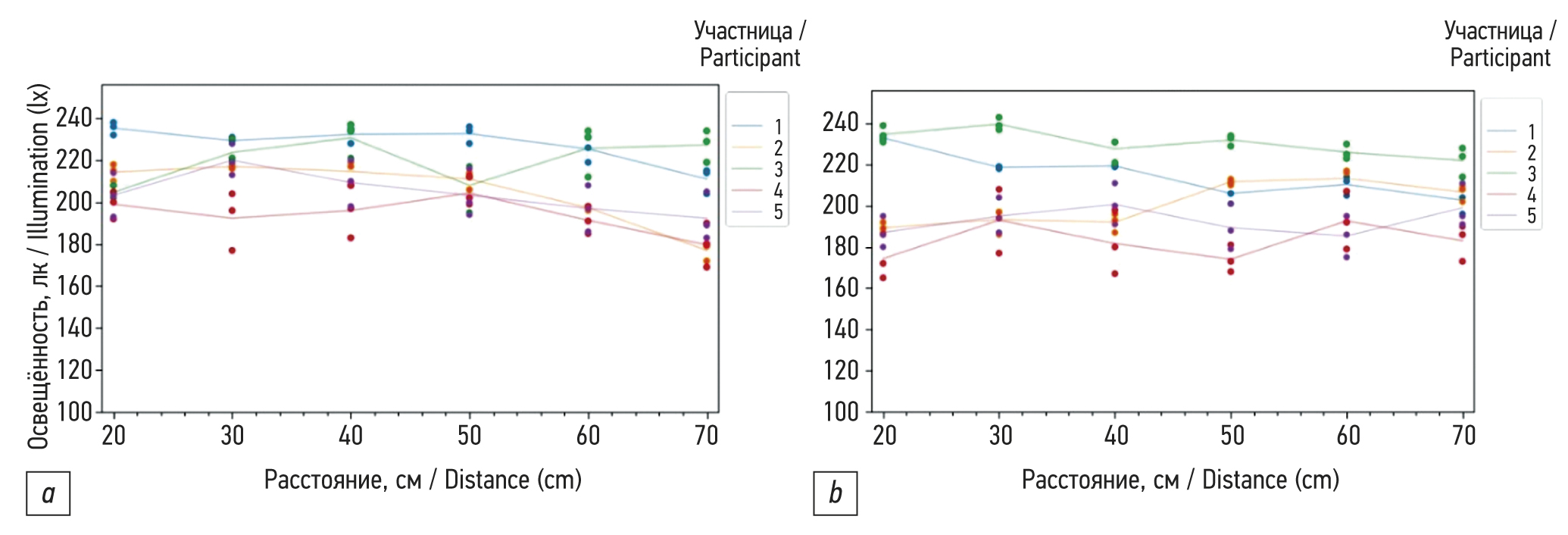

7. Fig. 6. Change of color coordinate "B" at point 3 depending on distance: a — cold light, b — warm light

Download (819KB)

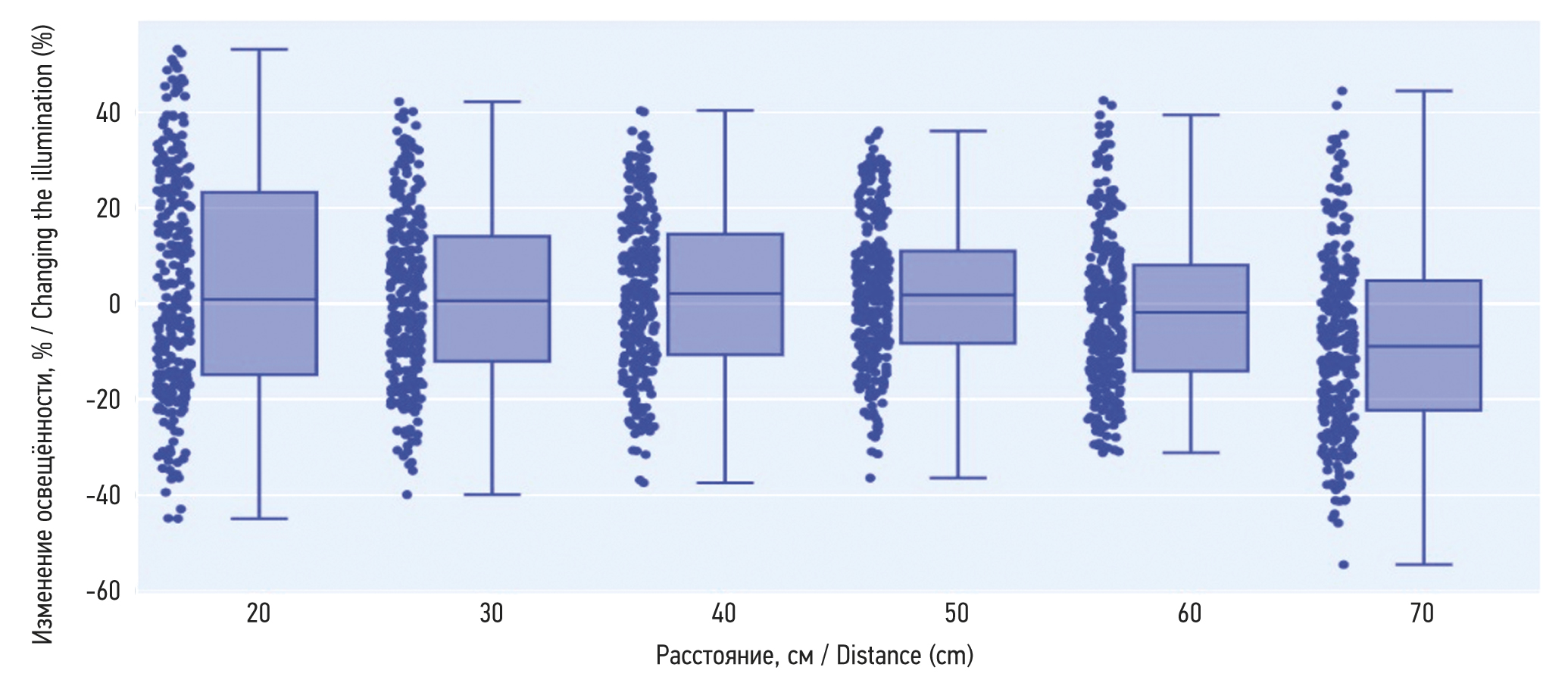

8. Fig. 7. Summary diagram of the total values for each of the distances

Download (1MB)

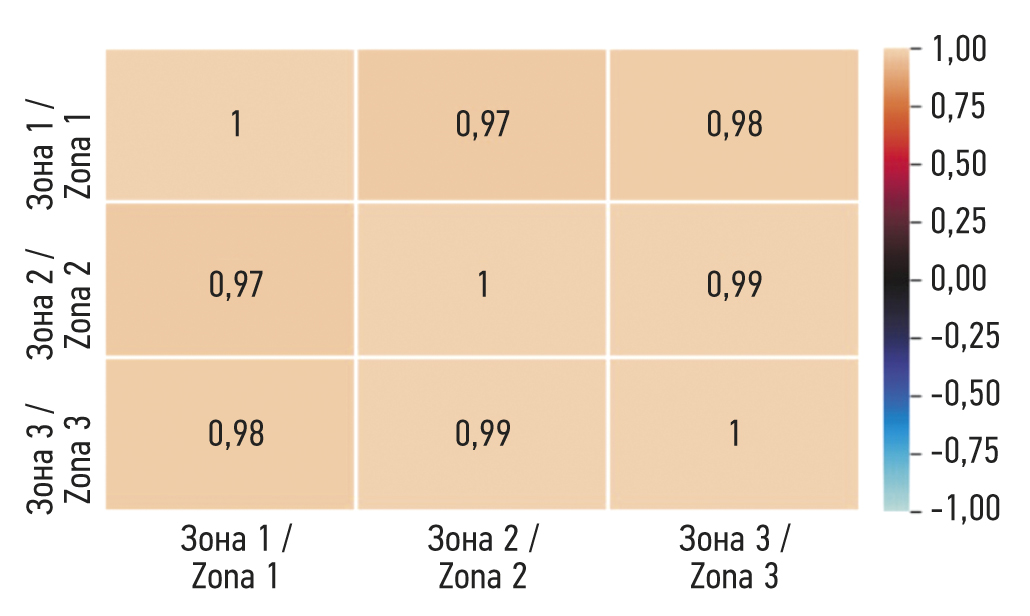

9. Fig. 8. Heatmap of the relative dependence of color coordinates in the evaluation area

Download (704KB)

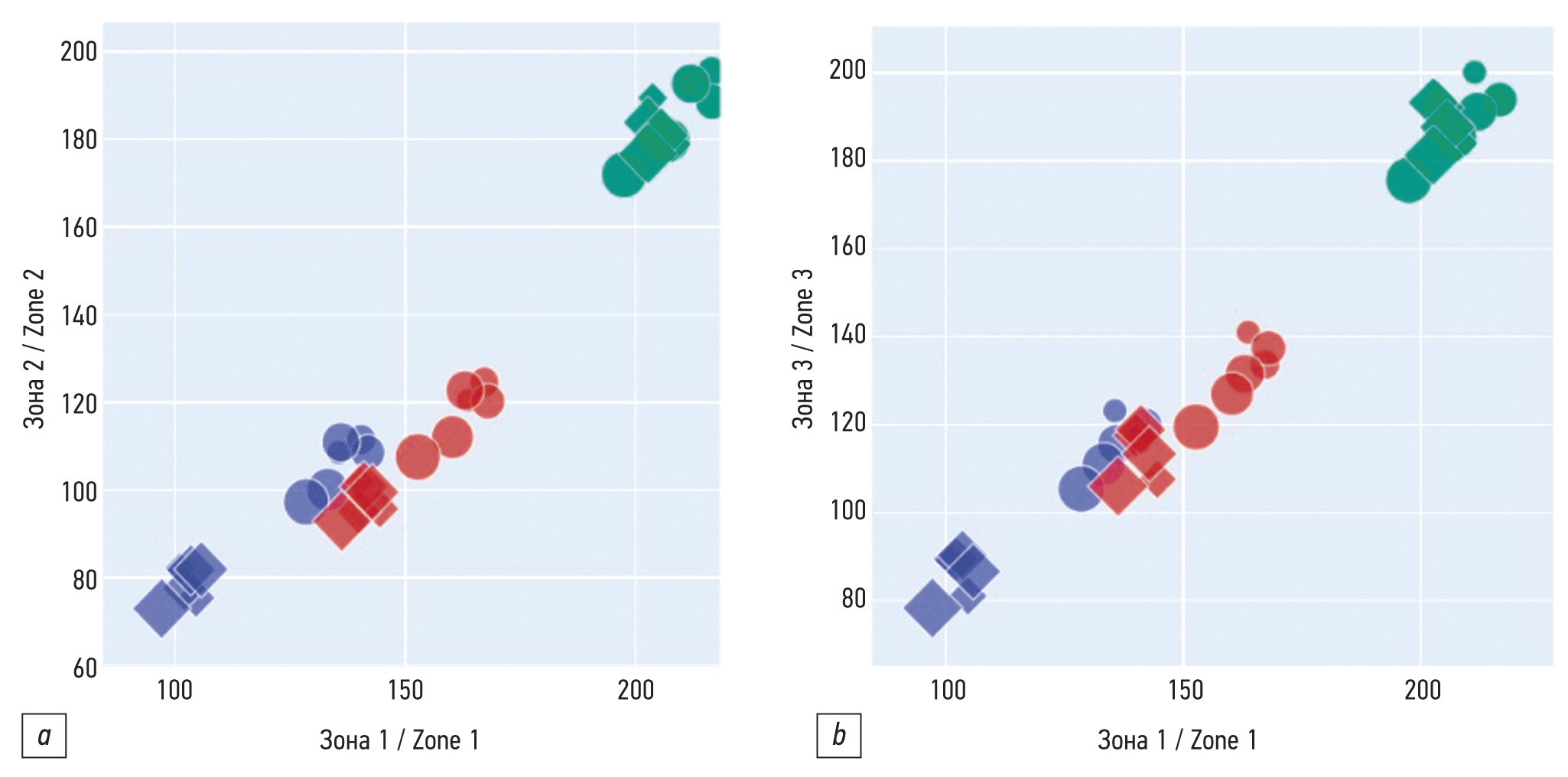

10. Fig. 9. Graphs of the relative dependence of color coordinates: a — in zones 1 and 2, b — in zones 1 and 3
