Some aspects of the application of magnetic resonance imaging for differential diagnostics of acute hematogenous osteomyelitis in children

Cover Page


Cite item

Full Text

Open Access Open Access
Restricted Access Access granted
Restricted Access Subscription or Fee Access

Abstract

BACKGROUND: Acute hematogenous osteomyelitis is a purulent septic disease found in children at any age. This pathology still occupies a leading place in the structure of urgent pathologies in children which is characterized by difficult diagnostics, severe course and long-term complications leading to orthopedic problems and disability. Outcomes after its treatment directly depend on the effectiveness of early diagnostics. X-ray and CT examination at the first week of the disease are not effective in terms of accuracy and informativeness. Ultrasound is recognized as an effective method for diagnosing metaepiphyseal processes which are specific for young children. Osteoscintigraphy can be used, but in fact, it is rarely found in emergency departments; and besides, there is a probability that this technique in children can give false negative results. Osteotonometry and exploratory osteoperforation are invasive therapeutic and diagnostic procedures and should be used in case of strict indications. Magnetic resonance imaging (MRI) is an informative and non-invasive method that can be applied at the early intramedullary stages of the disease. MRI for differential diagnostics allows to avoid needless osteoperforation.

AIM: To conduct a retrospective analysis on MRI effectiveness for differential diagnostics in children with acute hematogenous osteomyelitis.

METHODS: The authors present their own experience in examining and treating children who were admitted to the City Emergency Clinical Hospital No 7 in Volgograd with acute pain in extremities and suspected arthritis or osteomyelitis in 2018-2021.

RESULTS: Patients were comparable in age, complaints, anamnesis and laboratory findings. In two clinical observations, retrospective analysis was done. In other two patients, MRI has proven its effectiveness when, in the first case, surgical aggression was avoided, and the patient was successfully cured with conservative techniques in a short time. In the second case, MRI helped to verify the diagnosis and to objectively justify indications for surgery.

CONCLUSION: MRI in children with suspected acute hematogenic osteomyelitis is justified and informative even at early stages of the disease. In some cases, it allows to avoid such invasive methods as exploratory osteoperforation.

Full Text

Restricted Access

About the authors

Aleksey G. Sinitsyn

Volgograd State Medical University, Volgograd

Author for correspondence.
Email: all-sur04@mail.ru
ORCID iD: 0000-0002-8308-8364
SPIN-code: 3223-7231

MD

Россия, 1 Pavshikh Bortsov square, 400066 Volgograd

Andrey I. Perepelkin

Volgograd State Medical University, Volgograd

Email: similipol@mail.ru
ORCID iD: 0000-0001-5964-3033
SPIN-code: 5545-8353

MD, Dr. Sci. (Medicine), Professor

Россия, 1 Pavshikh Bortsov square, 400066 Volgograd

Gleb A. Kopan

Volgograd State Medical University, Volgograd

Email: gleb.kopan@yandex.ru
ORCID iD: 0000-0002-6627-1028
SPIN-code: 1465-6360

MD

Россия, 1 Pavshikh Bortsov square, 400066 Volgograd

Nikita V. Novikov

Volgograd State Medical University, Volgograd

Email: nvnovikov.volsmu@mail.ru
ORCID iD: 0000-0002-6344-0236

MD

Россия, 1 Pavshikh Bortsov square, 400066 Volgograd

References

  1. Thakolkaran N, Shetty AK. Acute hematogenous osteomyelitis in children. Ochsner J. 2019;19(2):116–122. doi: 10.31486/toj.18.0138
  2. Dartnell J, Ramachandran M, Katchburian M. Haematogenous acute and subacute paediatric osteomyelitis: A systemic review of the literature. J Bone Joint Surg Br. 2012;94(5):584–595. doi: 10.1302/0301-620X.94B5.28523
  3. Barskaya MA, Kuzmin AI, Terekhina MI, et al. Acute hematogenic osteomyelitis in children. Int J Applied Fundamental Res. 2015;(12–7):1217–1219. EDN: VJFTVT
  4. Mashkov AE, Slesarev VV. Features of complex treatment of acute hematogenic osteomyelitis in children. Universum: Meditsina i farmakologiya. 2015;(4):1. EDN: TNYEVN
  5. Mikhaylova SI, Rumyantseva GN, Yusufov AA, et al. Acute radiation diagnostic methods of hematogenous osteomyelitis in children of different age groups. Sovremennye problemi nauki i obrazovaniya. 2020;(2):148. EDN: MFGUOL doi: 10.17513/spno.29711
  6. Cybin AA, Boyarincev VS, Mashkov AE, et al. Osteomyelitis in children. Tula: Akvarius; 2016. (In Russ.)
  7. Iliadis AD, Ramachandran M. Paediatric bone and joint infections. EFORT Open Rev 2017;2(1):7–12. doi: 10.1302/2058-5241.2.160027
  8. Fayad LM, Carrino JA, Fishman EK. Musculoskeletal infection: Role of CT in the emergency department. Radiographics. 2007;27(6):1723–1736. doi: 10.1148/rg.276075033
  9. Labuzov DS, Salopenkova AB, Proshhenko JN. Methods of diagnosis of acute epiphyseal osteomyelitis in children. Pediatr Orthopedics Traumatol Reconstructive Surg. 2017;5(2):59–64.EDN: YSTYJZ doi: 10.17816/PTORS5259-64
  10. Jurkovsky AM, Voronecky AN. Early diagnosis of osteomyelitis in children: The limits of diagnostic capabilities. Novosti khirurgii. 2009;17(4):194–199. (In Russ.) EDN: PBYFDB
  11. Strelkov NS, Razin MP. Hematogenic osteomyelitis in children. Moscow: GEOTAR-Media; 2018. (In Russ.)
  12. Dodwell ER. Osteomyelitis and septic arthritis in children: Current concepts. Curr Opin Pediatr. 2013;25(1):58–63. doi: 10.1097/MOP.0b013e32835c2b42
  13. Saavedra-Lozano J, Falup-Pecurariu O, Faust SN, et al. Bone and joint infections. Pediatr Infect Dis J. 2017;36(8):788–799. doi: 10.1097/INF.0000000000001635
  14. Kaplan SL. Recent lessons for the management of bone and joint infections. J Infect. 2014;68(Suppl 1):51–56. doi: 10.1016/j.jinf.2013.09.014
  15. Fattore J, Goh DS. Revisiting the important role of magnetic resonance imaging (MRI) in long bone acute osteomyelitis: A case report of methicillin resistant Staphylococcus aureus acute tibial osteomyelitis with conventional radiography, computed tomography, and MRI. Radiology Case Reports. 2020;15(10):2003–2008. doi: 10.1016/j.radcr.2020.07.079
  16. Alexander KM, Laor T, Bedoya MA. Magnetic resonance imaging protocols for pediatric acute hematogenous osteomyelitis. Pediatr Radiol. 2023;53(7):1405–1419. EDN: KURPRE doi: 10.1007/s00247-022-05435-2
  17. Garkavenko JE, Semenov MG, Troshhieva DO. Complex treatment of children with the consequences of hematogenic osteomyelitis: At the intersection of problems. Pediatr Orthopedics Traumatol Reconstructive Surg. 2016;4(2):29–36. (In Russ.) EDN: WCDCLJ doi: 10.17816/PTORS4229-36
  18. Kovalinin VV, Kleshchevnikova KYu, Dzhanchatova BA. The radiology of osteomyelitis. Russ Electronic J Radiol. 2014;4(3):66–76. EDN: THWQOB
  19. Simpfendorfer CS. Radiologic approach to musculoskeletal infections. Infect Dis Clin. 2017;31(2):299–324. doi: 10.1016/j.idc.2017.01.004
  20. Lee YJ, Sadigh S, Mankad K, et al. The imaging of osteomyelitis. Quant Imaging Med Surg. 2016;6(2):184. doi: 10.21037/qims.2016.04.01
  21. Golovanev MA. Osteomyelitis. In: Pediatric surgery: National guidance. Ed. by A.Yu. Razumovsky. 2nd revised and updated. Moscow: GEOTAR-Media; 2021. (Series: National Guidelines). (In Russ.) doi: 10/33029/9704-5785-6-PSNR-2021-2-1-1280
  22. Sholohova NA, Ol’hova EB, Shmeleva JI, et al. The role of mri in the diagnosis of osteomyelitis in adolescents (case report). Diagnost Intervent Radiol. 2020; 14 (2):67–72. EDN: OGNNQW doi: 10.25512/DIR.2020.14.2.08

Supplementary files

Supplementary Files
Action
1. JATS XML
Download

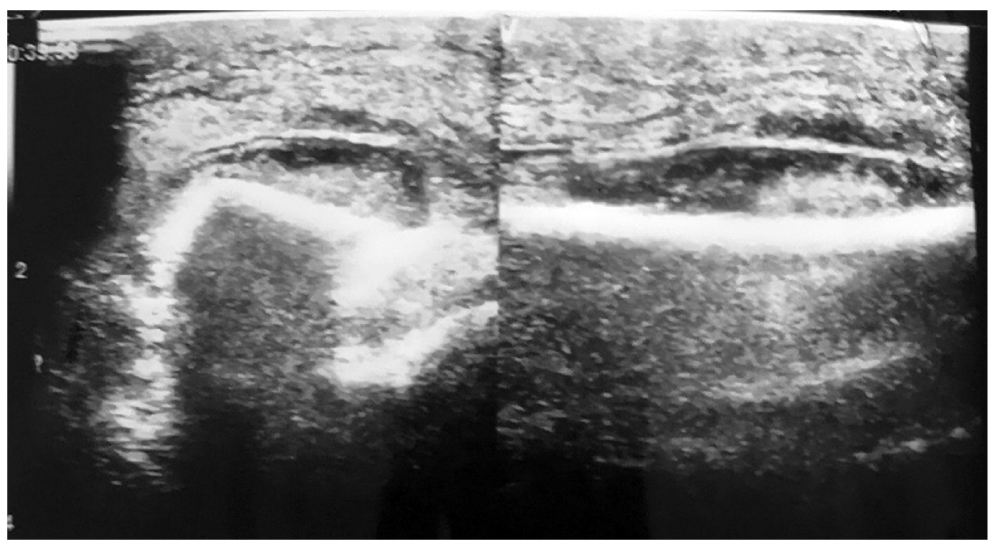

2. Fig. 1. Ultrasound of the left leg on day 8 of the disease: in the projection of the lower third of fibula external surface, liquid is seen — 40–42 mm high, 21 mm wide, up to 6–7 mm thick, with fine suspension, floating — paraossal phlegmon.

Download (723KB)
Indexing metadata

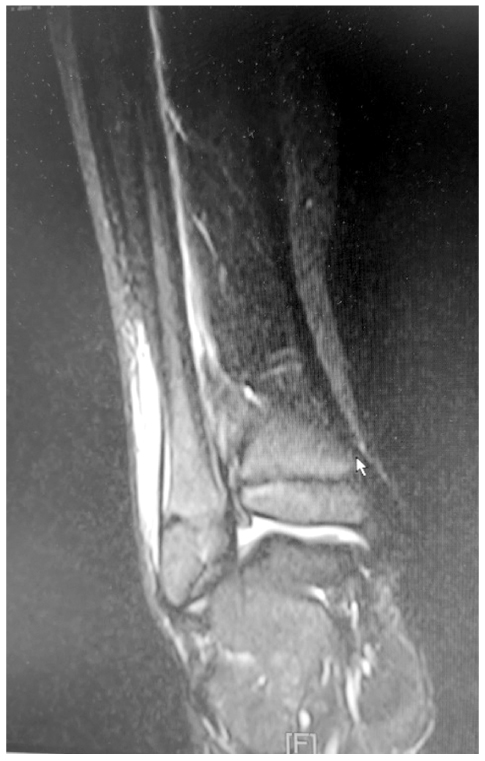

3. Fig. 2. MRI of the fibula (front plane, T2-weighted imaging); patient — girl 8 y.o. with acute hematogenous osteomyelitis on day 2 of the disease; zone of reduced intensity of T2 signal from the bone marrow of the distal third of the metaphysis.

Download (631KB)
Indexing metadata

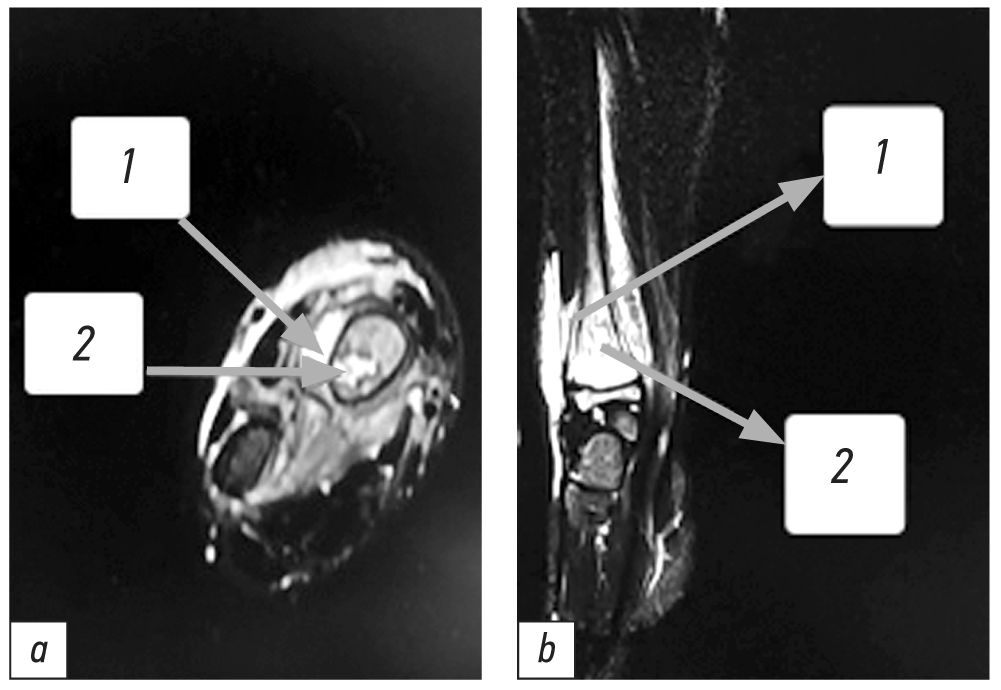

4. Fig. 3. MRI of the radial bone (T2-weighted imaging with suppression of MR signal from adipose tissue) on day 5 of the disease; patient is a 13-year-old boy, a — axial plane, b — coronary plane): 1 — pronounced inflammatory reaction of the periosteum and its detachment, 2 — hypointensive metaphysis destruction zone along the medial surface of the radial bone.

Download (668KB)
Indexing metadata

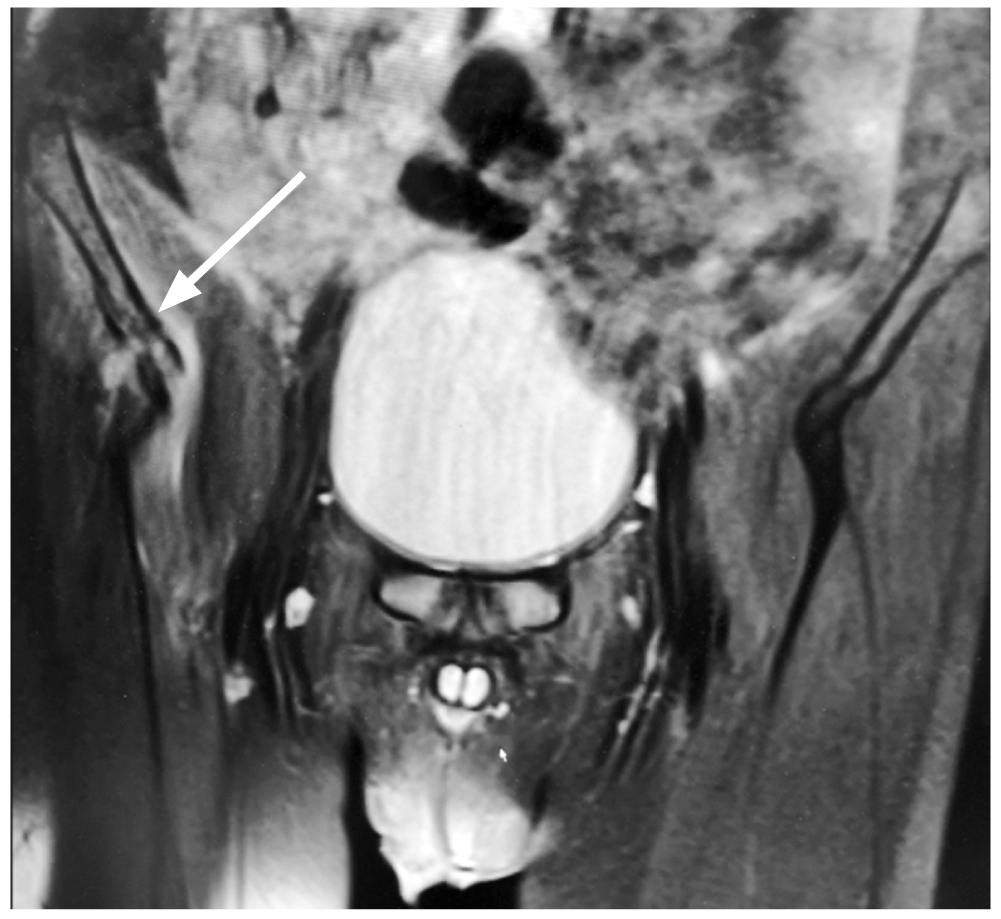

5. Fig. 4. MRI of the acute hematogenic osteomyelitis of the right iliac bone (front plane, T2-weighted imaging) in a 10-y.o. child on day 5 of the disease. Local edema of subchondral surface of the right iliac bone (arrow).

Download (775KB)
Indexing metadata
6. Fig. 5. Osteoperforation of the right radial bone: creamy pus appeared under pressure.

Download (895KB)
Indexing metadata
